PRODUCTS
Optical Communication
Terminal Devices
OSA
| Picture | Product Name | Part Number | Interface | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|
 |
GPON ONU BOSA | HDB3434 | SC/APC Pigtail SC/UPC Pigtail |
C,H | 1.8~5mW | 1244Mb/S | 1310nm | -30.5dBm | 2488Mb/s | 1490nm |
 |
RFog BOSA | HDB6540 | SC/APC Pigtail | H | 1.2~4.4mW | 2488Mb/S | 1610nm | - | - | 1550nm |
 |

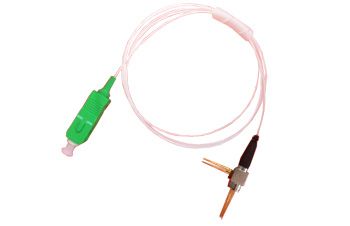

RFog BOSA | HDB3530 | SC/APC Pigtail | H | 1.2~4mW | 1244Mb/S | 1310nm | - | - | 1550nm |
 |

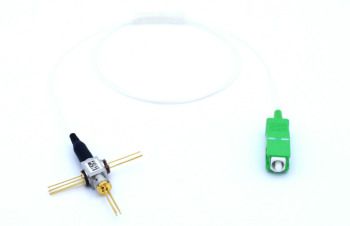

GPON ONU Triplexer | HDP3434 | SC/APC Pigtail | C,H | ≥1.8mW | 1250Mb/S | 1310nm | -30.5dBm | 2488Mb/s | 1490nm |
 |

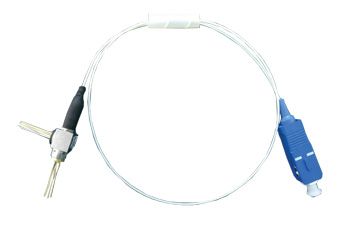

10G EPON Symmetrical ONU BOSA | HDB2588 | SC Receptacle SC/APC Pigtail SC/UPC Pigtail |
C,H | ＞2.5mW | 10312.5Mb/S | 1270nm | -29.5dBm | 10312.5Mb/s | 1577nm |
 |

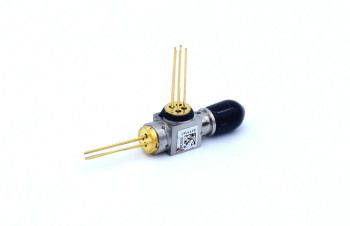

XGPON ONU BOSA | HDB2548 | SC Receptacle SC/APC Pigtail SC/UPC Pigtail |
C,H | ＞2.4mW | 2488Mb/S | 1270nm | -29.5dBm | 9953Mb/s | 1577nm |
 |
10G EPON Asymmetrical ONU BOSA | HDB3538 | SC Receptacle SC/APC Pigtail SC/UPC Pigtail |
C,H | ＞1.8mW | 1250Mb/S | 1310nm | -29.5dBm | 10312.5Mb/s | 1577nm |
