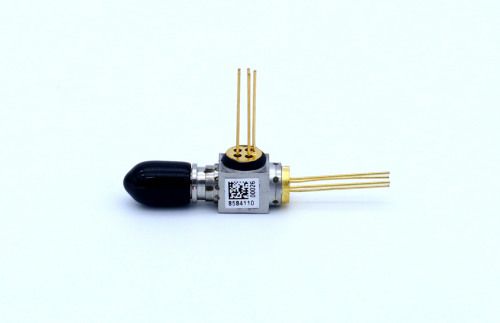

10G EPON Asymmetrical ONU BOSA
This single-fiber optical subassembly is designed for FTTx applications. It is integrated with one 1.25Gb/s 1310nm DFB LD and one 10Gb/s 1577nm Receiver with APD together with optical filters for beam direction.
REQUEST| Picture | Product Name | Part Number | Interface | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|
| 10G EPON Asymmetrical ONU BOSA | HDB3538 | SC Receptacle SC/APC Pigtail SC/UPC Pigtail |
C,H | ＞1.8mW | 1250Mb/S | 1310nm | -29.5dBm | 10312.5Mb/s | 1577nm |
• 10G EPON ONU application
• DFB uncooled laser diode
• High sensitive 10G APD/TIA
• SC/UPC Pigtail
• Standards: IEEE802.3av
