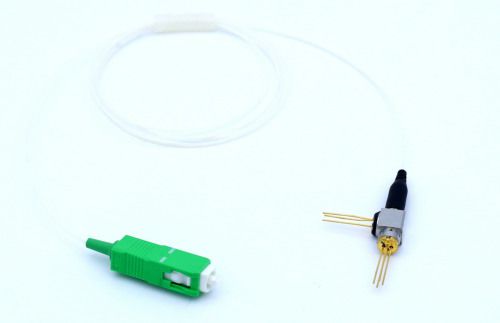

GPON ONU BOSA
This single-fiber optical subassembly is designed for FTTx applications. It is integrated with one 1.25Gb/s 1310nm DFB LD and one 2.5Gb/s PIN-TIA together with optical filters for beam direction .
REQUEST| Picture | Product Name | Part Number | Interface | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|
| GPON ONU BOSA | HDB3434 | SC/APC Pigtail SC/UPC Pigtail |
C,H | 1.8~5mW | 1244Mb/S | 1310nm | -30.5dBm | 2488Mb/s | 1490nm |
• 1.25Gbps upstream, 2.5Gbps downstream FTTx application.
• DFB uncooled laser diode
• High sensitive PIN-TIA
• Fiber pigtail: 9/125μm SM fiber with SC/APC connector
• Operation in wide temperature range
• Standards: ITU-T G.984.5
