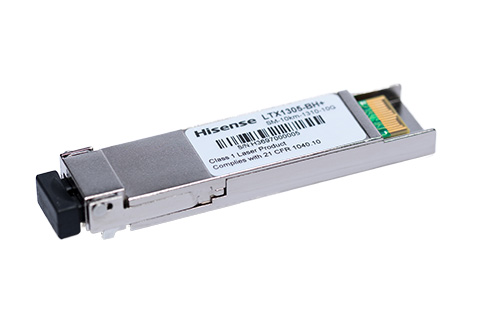

LTX1305 XFP Optical Transceiver
10Gb/s 1310 10km
The LTX1305 is a single mode 9.95Gb/s to 11.3Gb/s duplex optical transceiver designed for high performance service in advanced Gigabit Ethernet and Fibre Channel equipment. It employs a 1310nm DFB laser and an PIN/TIA receiver. It is housed in a rugged die cast “hot swappable” XFP package with the LC duplex optical connector.
| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LTX1305-BC+ LTX1305-BH+ |
XFP | LC | 10km | C,H | Single-mode | 1310nm | 10.3125Gb/s | -8.2~-0.5dBm | -14.4dBm |
• 10GBASE LR/LW 10G Ethernet
• 10G Fibre Channel
• LC Duplex optical interface
• 9.95~11.3Gb/s(GN2010D)
• 10km SMF
• power comsuption:1.5W
• Standards
802.3ae
SFF8077
