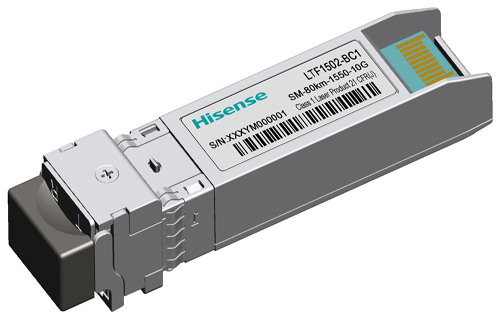

LTF1502 SFP+ Optical transceiver
10G SDH/SONET 1550nm 9.953Gb/s to 11.1Gb/s 80km
The LTF1502 SFP+ transceiver is intended for 80km reach service from 8.5Gb/s & 9.95Gb/s to 11.1Gb/s 1550nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the commercial temperature range. They are compliant with IEEE802.3ae 10GBASE-ZR/ZW , SDH/SONET, SFF-8431 and SFF-8432.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LTF1502-BC1 LTF1502-BH1 |
SFP+ | LC | 80km | C,H | Single-mode | 1550nm | 10Gb/s | 0~4dBm | -24dBm |
10G BASE-ZR/ZW 10G Ethernet
SDH(STM64)/SONET(OC-192)
8G Fiber Channel
LC Duplex optical interface
Maximum link length of 80km
8.5Gb/s & 9.95Gb/s to 11.1Gb/s
+3.3 V power supply
Low DC power consumption
2x10 SFP+ MSA compliant package
Hot swappable
High performance 1550nm EML laser
High sensitivity APD/TIA optical receiver
Single Mode operation
BER < 1X10-12
