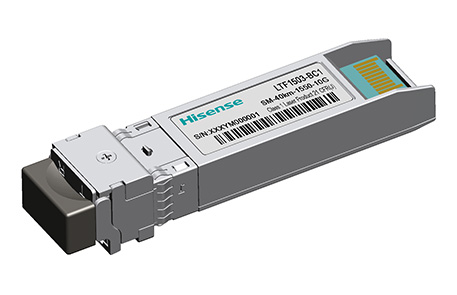

LTF1503 SFP+ Optical transceiver
10 SDH/SONET 1550nm 9.953Gb/s to 11.1Gb/s 40km
The LTF1503 SFP+ transceiver is intended for 40km reach service from 9.953Gb/s to 11.1Gb/s 1550nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the commercial temperature range. They are compliant with IEEE802.3ae 10GBASE-ER/EW , SFF-8431 and SFF-8432.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LTF1503-BC1 LTF1503-BH1 |
SFP+ | LC | 40km | C,H | Single-mode | 1550nm | 10Gb/s | -2~2dBm | -16.5dBm |
• 10G BASE-ER/EW 10G Ethernet
• SDH(STM64)/SONET(OC-192)
• 10G Fiber Channel
• ITU G.709 (OTU-2)
• ITU G.709 (OTU-2e)
• LC Duplex optical interface
• Maximum link length of 40km
• 9.95Gb/s to 11.1Gb/s TX/RX CDR
• +3.3 V power supply
• Low DC power consumption
• 2x10 SFP+ MSA compliant package
• Hot swappable
• High performance 1550nm EML laser
• High sensitivity PIN/TIA optical receiver
• Single Mode operation
• BER < 1X10-12
