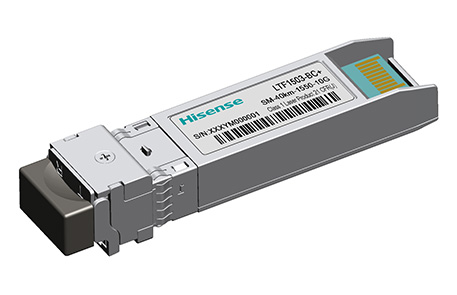

LTF1503 SFP+ Optical transceiver
10G Ethernet 1550nm 8.5G to 10.5Gb/s 40km
The LTF1503 SFP+ transceiver is intended for 40km reach service from 8.5G to 10.5Gb/s 1550nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the commercial temperature range. They are compliant with IEEE802.3ae 10GBASE-ER/EW , Fibre Channel,SFF-8431 and SFF-8432.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LTF1503-BC+ LTF1503-BH+ |
SFP+ | LC | 15km-40km | C,H | Single-mode | 1550nm | 10Gb/s | -4.7~4dBm | -15.8dBm |
• 10G BASE-ER/EW 10G Ethernet
• 8G Fibre Channel
• LC Duplex optical interface
• Maximum link length of 40km
• 8.5G to 10.5Gb/s
• +3.3 V power supply
• Low DC power consumption
• 2x10 SFP+ MSA compliant package
• Hot swappable
• High performance 1550nm EML laser
• High sensitivity PIN/TIA optical receiver
• Single Mode operation
• BER < 1X10-12
