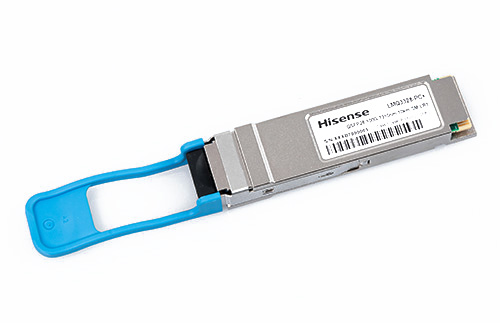

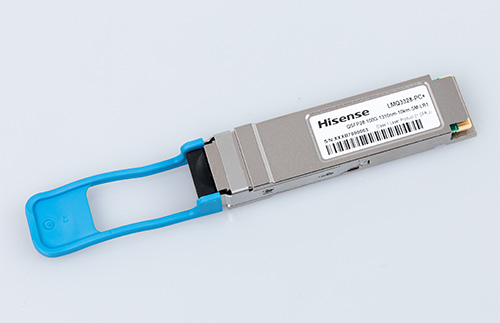

LMQ3328-PC+ QSFP28 Optical Transceiver
100Gb/s 10km
The LMQ3328 QSFP28 Optical transceiver is intended for the service with single mode fiber in 103.125Gb/s high speed data communications and computing applications. It meets the requirements of QSFP28 MSA, 100G-LR1, operates from a 3.3V DC power sup-ply and is offered in the Commercial temperature range. It employs a 1310nm EML laser and an PIN/TIA receive.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LMQ3328-PC+ LMQ3328-PH+ |
QSFP28 | LC | 10km | C,H | Single-mode | 1310nm | 100Gb/s | -1.9~4.8dBm | -8.2dBm |
• 100GBASE-LR1
• Data Rate：103.125 Gbit/s Single Rate
• Optical Interface Compliant to 53.125 GBd PAM4 100GBASE-LR1
• 10km link on SMF single-mode Fiber
• QSFP28 MSA Compatible electrical I/O
• Case Operating Temperature: Commercial: 0 to 70ºC
• +3.3V power supply
• RoHS compliance
