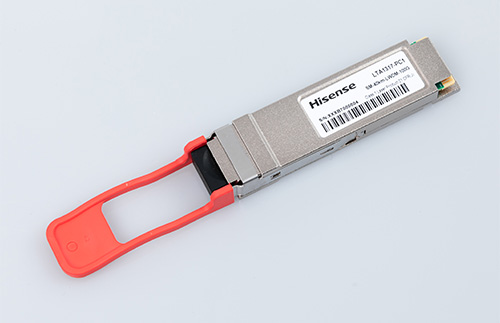

LTA1317-PC1 QSFP28 Optical Transceiver

LAN-WDM 4X25Gb/s 40km

The LTA1317 QSFP28 Optical transceiver is intended for the service with single mode fiber in 103.125Gb/s high speed data communications and computing applications. It meets the requirements of QSFP28 MSA, 100G-ER4,LAN-WDM MSA, operates from a 3.3V DC power sup-ply and is offered in the Commercial temperature range. The module has an aggregate link bandwidth in excess of 100Gb/s by multiplexing of LAN-WDM optical lanes, each lane capable of transmitting 25.78125Gb/s over 40km on SMF optical fiber. It is fabricated with a rugged die cast metal housing and cage assembly. The device is Class 1 laser safety compliant and meets the EU Directive 2002/95/EC for RoHS compliance.

REQUEST
Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LTA1317-PC1 QSFP28 LC 40km C Single-mode 1295nm
1300nm
1305nm
1310nm
100Gb/s -2.9~2.9dBm -20.9dBm(Avg)
-21.4dBm(OMA)

• High performance computing, datacom and sever data links

• High speed access

• Ethernet


• 4 independent optical lanes

• Lane data rate of 25.78125Gb/s

• Aggregate data rate in excess of 103.125Gb/s (over 4 lanes)

• Hot Pluggable

• 40km link on SMF single-mode Fiber

• QSFP28 MSA Compatible electrical I/O

• Case Operating Temperature: Commercial: 0 to 70ºC

• +3.3V power supply

• RoHS compliance
