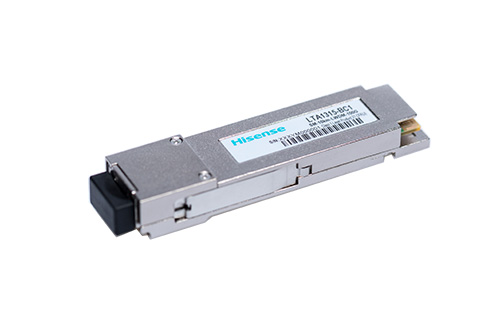

LTA1315 QSFP28 Optical Transceiver
100Gb/s 10km
The LTA1315 is a low power consumption QSFP28 transceiver with high performance up to 103.12Gb/s high speed telecom and data communications over 10km single mode fiber. It is compliant with the QSFP28 MSA, IEEE802.3.ba-2010 100GBase LR4 specifications. It is offered in the commercial temperature range. The module has an aggregate link bandwidth in excess of 100Gb/s by using 4 electrical lanes , each capable of transmitting 25.78Gb/s, 4 optical lanes, each capable of 25.78 Gb/s.
| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LTA1315 -PC1 | QSFP28 | LC | 10km | C | Single-mode | LAN-WDM | 100Gb/s | -4.3dBm~4.5dBm | -8.6dBm(OMA) |
• 100GBASE-LR4
• 4 electrical, 4 optical lanes
• Aggregate data rate in excess of 103.12Gb/s
• Up to 10km link on SMF single-mode fiber
• Cooled 4x25 G LAN-WDM DML Laser Array / Pin PD array
• I2C Interface
• QSFP28 MSA compliance
• Power consumption < 4W
• Standards
IEEE 802.3ba 100GBASE LR4
ITU-T G.959.1 2012
QSFP28 MSA
