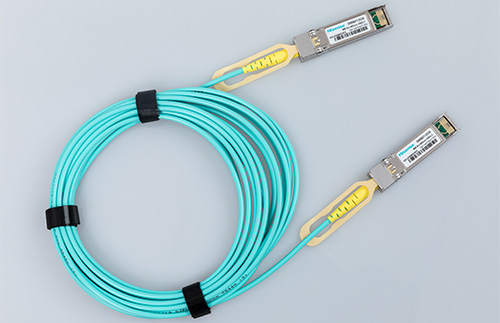

DMM8211 DSFP AOC
100G Active Optical Cable
The DMM8211 is a DSFP active optical cable (AOC) for 2 x 26.56GBaud optical links. It is compliant with the DSFP MSA specifications. It operates at 26.56GBaud and the cable length is up to 100m. It is FDA 21CFR1040.10 and IEC/EN 60825-1:2014, IEC/EN 60825-2:2010 Class 1 laser safety compliant.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| DMM8211-DCxx | DSFP | Cable | 1~100m | C | Multi-mode | 850nm | 2x50Gb/s | - | - |
• High performance computing interconnect
• Data center
2 independent parallel optical channels
Each channel data rate up to 26.56GBaud with integrated CDR
Hot Pluggable
Up to 100m link over OM4 Multi-mode
CML Compatible electrical I/O
DSFP MSA Compliance
CMIS 4.0 Compliance
Case Operating Temperature Range:
Commercial: 0 to 70ºC
RoHS compliance
