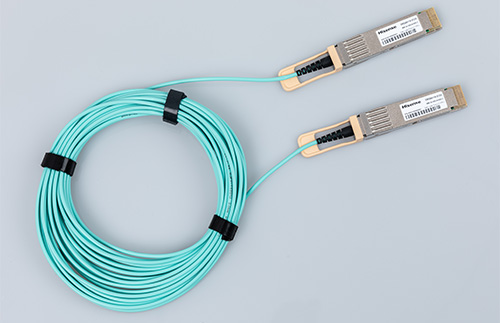

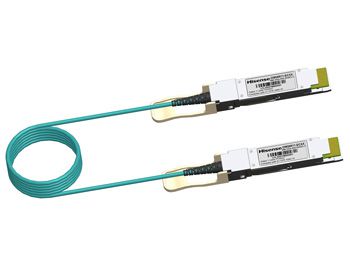

DMQ8811A QSFP-DD AOC
8×50G Active Optical Cable
The DMQ8811A is a QSFP-DD active optical cable (AOC) for 8 x 26.56GBaud optical links. It is compliant with the QSFP-DD MSA specifica-tions. It operates at 26.56GBaud and the cable length is up to 100m .
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| DMQ8811A-ECXX | QSFP-DD | Cable | 1~100m | C | Multi-mode | 850nm | 8x50Gb/s | - | - |
• High performance computing interconnect
• Data center
• 8 independent parallel optical channels
• Each channel data rate up to 26.56GBaud with integrated CDR
• Hot Pluggable
• Up to 100m link over OM4 Multi-mode
• CML Compatible electrical I/O
• PAM4 & NRZ compatible
• QSFP-DD MSA Compliance
• Case Operating Temperature Range:
• Commercial: 0 to 70ºC
• RoHS compliance
