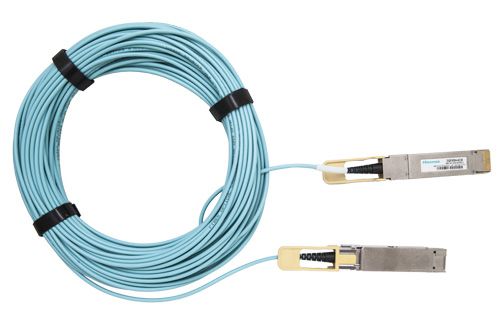

DQF8504 QSFP-DD AOC<br>8×25.78Gb/s Active Optical Cable
The DQF8504 is a QSFP-DD active optical cable (AOC) for 8 x 25Gb/s optical links. It is compliant with the QSFP-DD MSA specifications. It operates at 25.78Gb/s and the cable length is up to 100m .
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| DQF8504-4CXX | QSFP-DD | Cable | 1~100m | C | Multi-mode | 850nm | 8x25Gb/s | - | - |
• High performance computing interconnect
• 8 independent parallel optical channels
• Each channel data rate up to 25.78Gb/s with integrated CDR
• Hot Pluggable
• Up to 100m link over OM4 Multi-mode Fiber with 5E-05 BER
operation and host side enable FEC
• CML Compatible electrical I/O
• QSFP-DD MSA Compliance
• Case Operating Temperature Range:
Commercial: 0 to 70ºC
RoHS compliance
