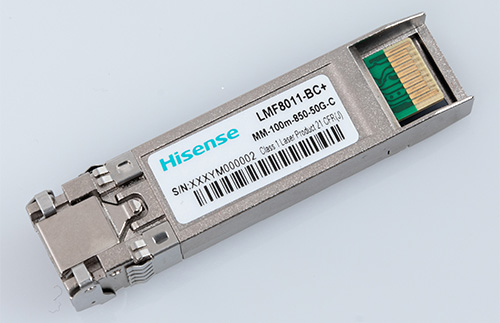

LMF8011 SFP56 Optical Transceiver
50G Ethernet 26.56GBaud 850nm 100m
The LMF8011 is SFP56 transceiver. It operates at 26.56GBaud and up to 100m with a 2-fiber duplex LC OM4 multi-mode fiber. It is compliant with SFF-8431、SFF-8432 and SFF-8472.It incorporates the SFP+ MSA LVTTL Loss of Signal (Rx_LOS), Tx Fault (Tx_FAULT), MOD_ABS and Tx Disable (Tx_DIS) monitor and control functions. The differential AC coupled Tx and Rx data interfaces are CML compatible.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LMF8011-BC+ | SFP56 | LC | 100m | C | Multi-mode | 850nm | 50Gb/s | -6.4~4dBm | -8.4~4dBm |
• High performance computing interconnect
• Data center
LC Duplex optical interface
Reach: max up to 100m on OM4 MMF
2x10 SFP+ MSA compliant package
SFF-8472 Compliance
High performance 850 nm VCSEL laser
High sensitivity PIN/TIA optical receiver
Case Operating temperature range:
Commercial: 0 to 70ºC
2-wire I2C data bus
RoHS compliance
