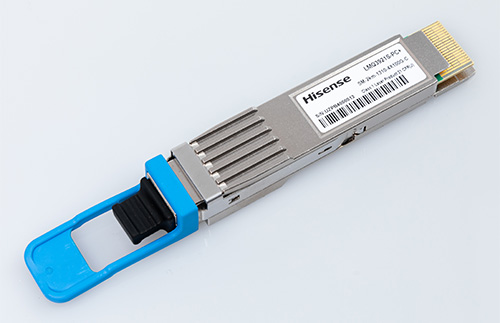

LMQ3921S-PC+ Transceiver 4x100G 2km QSFP-DD DR4+ Transceiver
The LMQ3921S-PC+ is a QSFP-DD Optical transceiver for 4x100Gb/s optical links. It is compliant with the of QSFP-DD MSA specifications. It operates at 53.125GBaud up to 2km over single-mode fiber.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LMQ3921S-PC+ | QSFP-DD | MPO | 2km | C | Single-mode | 1310nm | 4x100Gb/s | -2.9~4dBm(each lane) | -5.9~4dBm (each lane) |
• High performance computing interconnect
• Data center
• 8 independent electrical input/output channels
• 4 independent parallel optical channels
• MPO optical connector
• Hot Pluggable
• 2km link on SMF single-mode Fiber
• Silicon photonics Technology
• QSFP-DD MSA Compliance
• Case Operating Temperature:
• Commercial: 0 to 70ºC
• RoHS II Compliance
