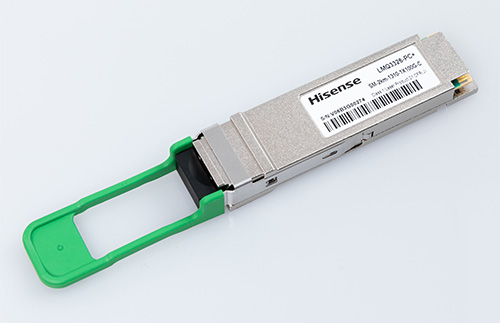

LMQ3326-PC+ Transceiver 100G 2km QSFP28 FR1 Transceiver
The LMQ3326-PC+ is a QSFP-28 Optical transceiver for 100Gb/s optical links. It is compliant with the QSFP-28 MSA specifications. It operates at 53.125GBaud/s up to 2km over single-mode fiber.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LMQ3326-PC+ | QSFP28 | MPO | 2km | C | Single-mode | 1310nm | 100Gb/s | -2.9~4dBm | -6.9~4dBm |
• High performance computing interconnect
• Data center
4 independent electrical input/output channels
1 optical input/output channels
LC optical connector
Hot Pluggable
2km link on SMF single-mode Fiber
QSFP-28 MSA Compliance
Case Operating Temperature:
Commercial: 0 to 70ºC
RoHS II Compliance
