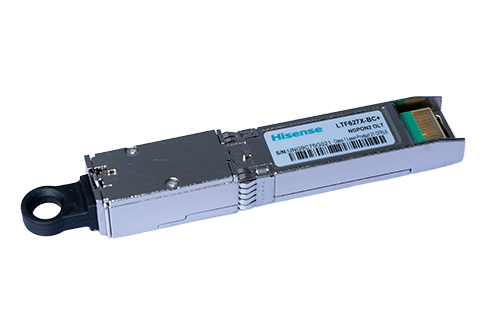

LTF62XX SFP+ NG-PON2 OLT Transceiver
Symmetrical 9.953Gbps OLT
The LTF627X is intended for NG-PON2 OLT application in four separate SFP+ housing. It is a series modules and each module is configured with a L-band 9.95328Gbps downstream transmitter and a C-band 9.95328Gbps upstream receiver which work in TDM configuration. The transmitters can be controlled by the LVTTL Tx_DISABLE function and the receivers incorporates the LVTTL Rx_SD output.
The LTF627X is designed to support up to 32/64 subscribers over distances of up to 20km in the ODN. It is FDA 21CFR1040.10 and IEC 60825-2 Class I laser safety compliant and meets the EEC Directive 2002/95/EC for RoHS compliance.
| Product Name | Part Number | Package | Interface | Reach | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NG-PON2 OLT | LTF627X-BC+ LTF627X-BCA+ |
SFP+ | SC | 20km | C | 5.2~8.2dBm 7.2~10.2dBm |
9.953Gb/s | 1596.34/1597.19/ 1598.04/1598.89nm |
-29.2dBm -30.6dBm |
9.953Gb/s | 1524~1544nm |
• NG-PON2 Access networks
• Fiber to the Home
• Fiber to the Building
• Fiber to the Curb
• SFP+ Package
• 3.3V power supply
• 2 Lambda
• Single SC receptacle optical connector
• Hot pluggable
• 2x10 SFP+ Electrical Interface
