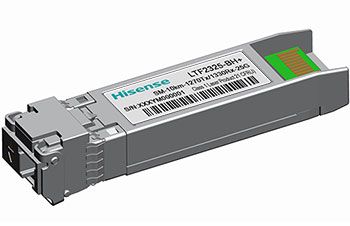

LTF2325 SFP28 Bidirectional Transceiver
25Gb/s 10km
The LTF2325 SFP+ footprint transceiver is intended for 10km reach service from 24.33Gb/s to 25.78Gb/s Tx1270nm/Rx1330 single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the commercial temperature range. They are compliant with SFP28 MSA , SFF-8431 and SFF-8432. The low jitter and low bit error rate optical assembly features a 1270nm DML laser transmitter and PIN/TIA receiver.
REQUEST| Product Name | Part Number | Package | Interface | Reach | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25G BIDI | LTF2325-BH+ | SFP28 | LC | 10km | H | -4~2.2dBm | 25.78Gb/s | 1270nm | -12dBm | 25.78Gb/s | 1330nm |
• 25G BASE-LR Ethernet
• CPRI 25G
• OTU4
• 2x10 SFP28 Package Outline
• Single Fiber, Full Duplex Operation
• LC Optical Interface
• 1270nm CW Mode DFB Optical Transmitter
• 1330nm CW Mode PIN Optical Receiver
• IEEE 802.3cc 25GBase-LR
• SFP28 MSA
• Compliant with RoHS
