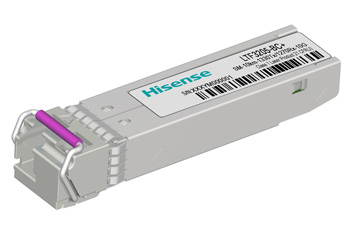

LTF3205 SFP+ Bidirectional Transceiver
10Gb/s 10km
The LTF3205 SFP+ transceiver is intended for 10km reach service from 9.95Gb/s to 10.3125Gb/s 1330nm/1270nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates over the commercial and industrial temperature ranges .The low jitter and low bit error rate optical assembly features a 1330nm DFB laser transmitter and a PIN/TIA receiver. It incorporates the SFP+ MSA LVTTL Loss of Signal (Rx_LOS), Tx Fault (Tx_FAULT), MOD_ABS and Tx Disable (Tx_DIS) monitor and control functions. The differential AC coupled Tx and Rx data interfaces are CML compatible.
REQUEST| Product Name | Part Number | Package | Interface | Reach | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10G BIDI | LTF3205-BC+ LTF3205-BH+ |
SFP+ | LC/UPC | 10km | C.H | -8.2~0.5dBm | 10.3125Gb/s | 1330nm | -14.4dBm | 10.3125Gb/s | 1270nm |
• High-speed storage area networks
• Computer cluster cross-connect
• Custom high-speed data pipes
• IEEE 802.3ae Base-LR/LW
• Single 3.3V DC Supply
• 10km Reach
• 2x10 SFP+ Package Outline
• Single Fiber, Full Duplex Operation
• LC Optical Interface
• Dual Wavelength (WDM) Bidirectional Transmission
• 1.2288 to 10.3125Gb/s Data Rate
• 1330nm CW Mode DFB Optical Transmitter
• 1270nm CW Mode PIN Optical Receiver
