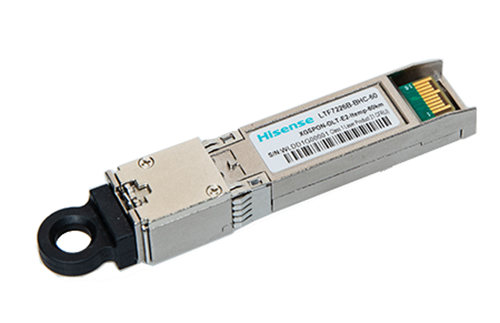

LTF7226B XGS-PON OLT Transceiver

Symmetrical 9.95328Gbps With Digital RSSI

The LTF7226B is intended for the XGS-PON OLT duplex optical transceiver module designed for low cost point-to-multipoint (P2MP) Fiber to the Home (FTTH), Business or Curb (FTTx) applications. It employs a 1577nm CW mode downlink EML operating at 9.953Gb/s and a 1270nm APD/TIA burst mode uplink receiver operating at 9.953Gbps and 2.488Gb/s. It is housed in a rugged die cast SFP+ package and is designed to operate over the commercial temperature, industrial temperature ranges. The transceiver requires a 3.3V power supply for operation. The laser transmitter can be controlled by the LVTTL Tx_Disable function, and the optical receiver incorporates LVTTL Rx_SD output.

It meets the EEC Directive 2015/863/EU for RoHS compliance. The Transceiver is ESD safe when tested according to IEC61000-4-2. The device complies with (US) FCC Class A, (Europe) CE Class A.
