DME8811A QSFP-DD to QSFP56 AOC
400G to 2x200G Active Optical Cable

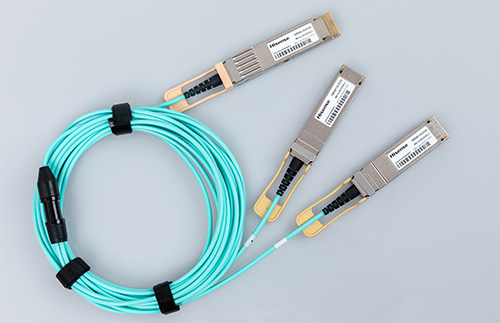

The DME8811A is a QSFP-DD active optical cable (AOC) to 2x QSFP56 active optical break-out. It is compliant with the QSFP56 MSA specifications. It operates at 26.56GBaud and the cable length is up to 100m.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| DME8811A-ECXX | QSFP-DD/QSFP56 | Cable | 1~100m | C | Multi-mode | 850nm | 400Gb/s/4x100Gb/s | - | - |
• High performance computing interconnect
• Data center
• Each channel data rate up to 26.56GBaud with integrated CDR
• Hot Pluggable
• Up to 100m link over OM4 Multi-mode
• CML Compatible electrical I/O
• PAM4 modulation
• QSFP-DD MSA Compliance
• QSFP56 MSA Compliance
• Case Operating Temperature Range:
• Commercial: 0 to 70ºC
• RoHS compliance
• Support 25G NRZ / 50G PAM4 rate select ability
• CMIS 4.0 for QSFP-DD side and SFF8636 for QSFP56 side
